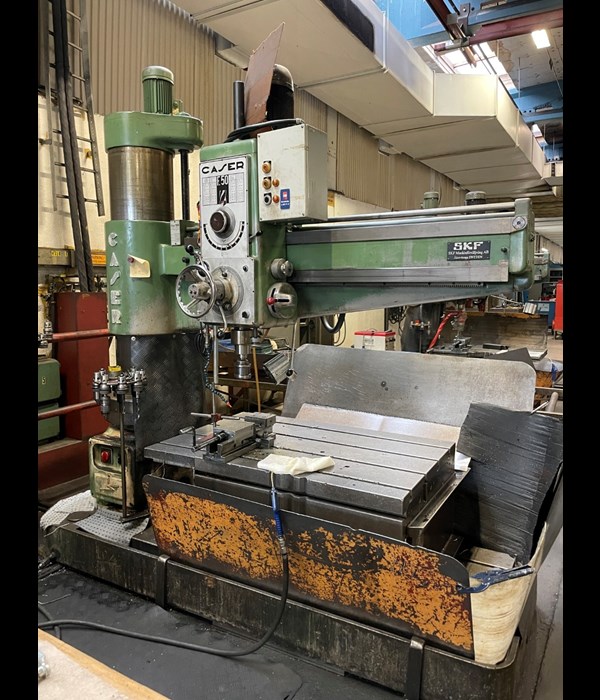

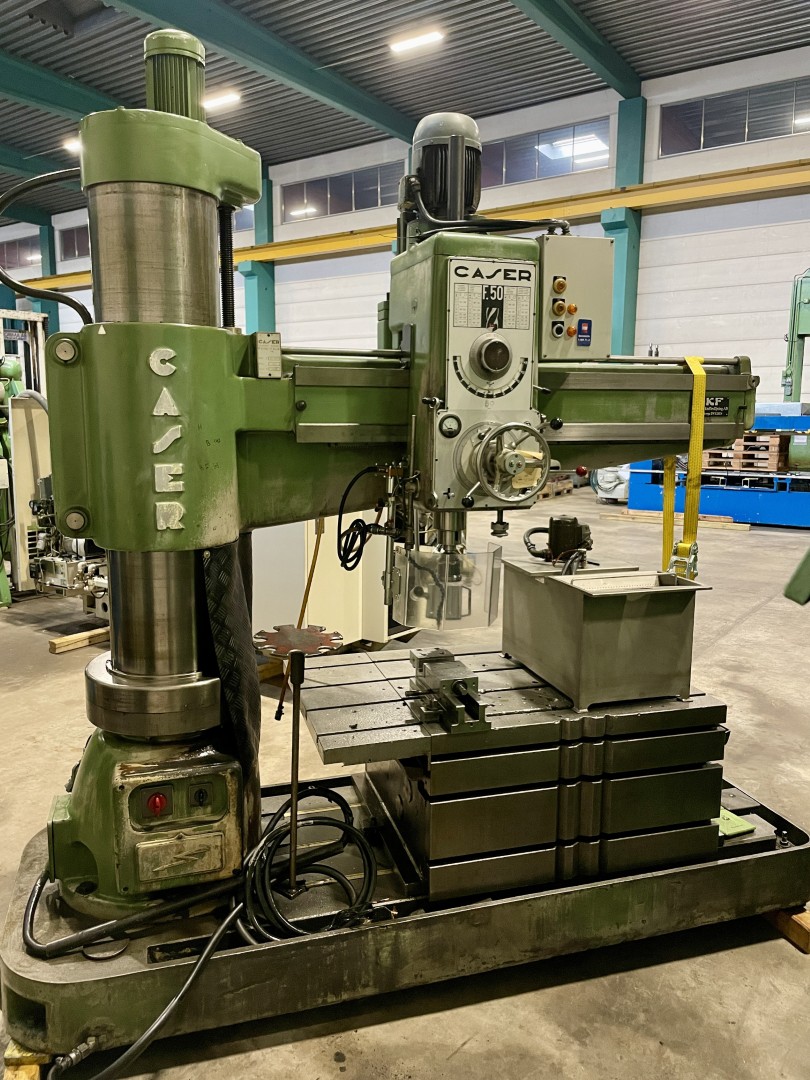

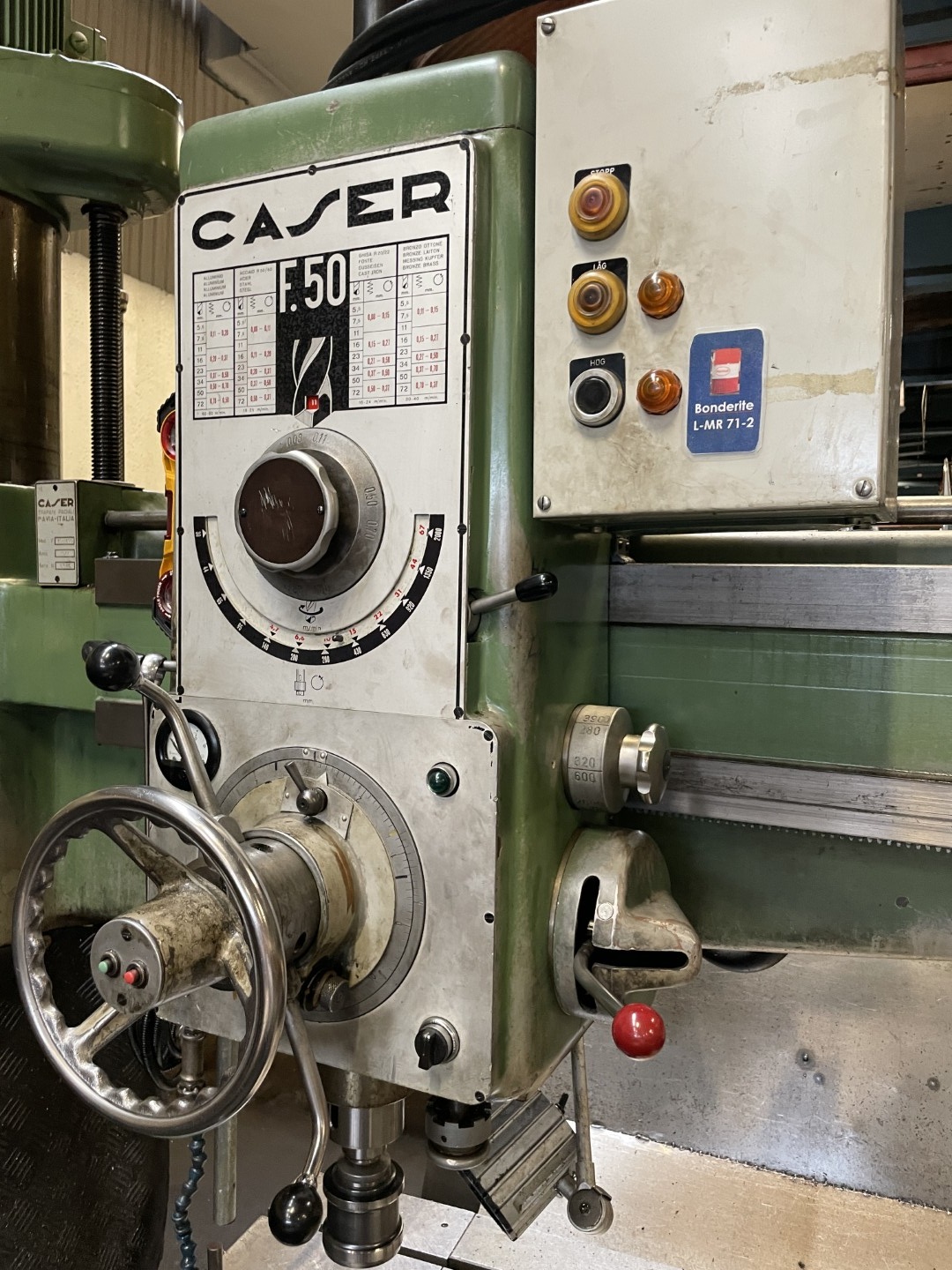

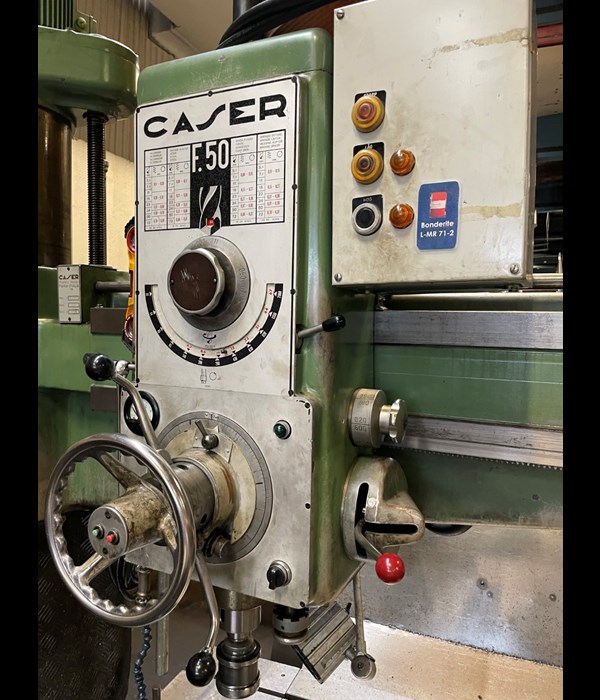

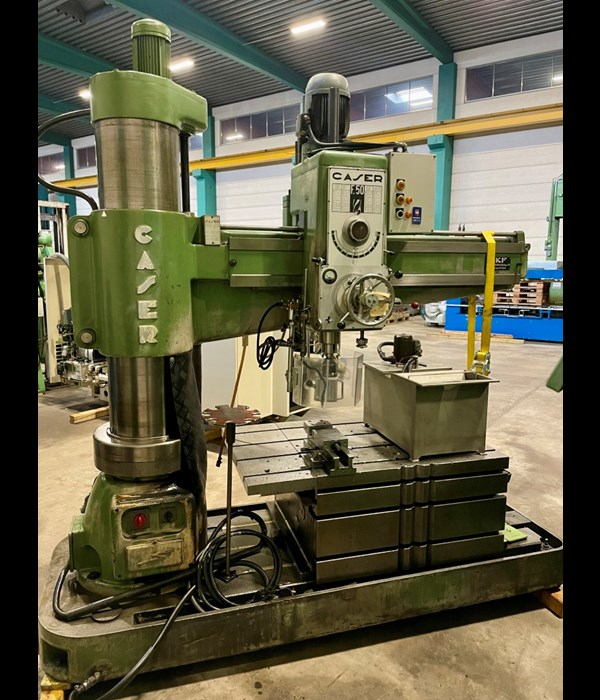

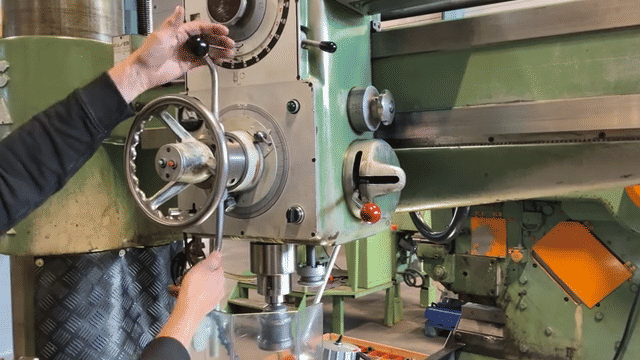

Caser F50-1600
Radial drill
| Specification | |
|---|---|
| Stock number: | 090164 |
| Serial number: | 91035 |
| Capacity in steel: | 50mm |
| Capacity in cast iron: | 70mm |
| Threads: | M50 |
| Radius: | 1600mm |
| Spindletaper: | Mk5 |
| Spindlespeed: | 30-2000rpm |
| Feed: | 0,08-0,7mm/r |

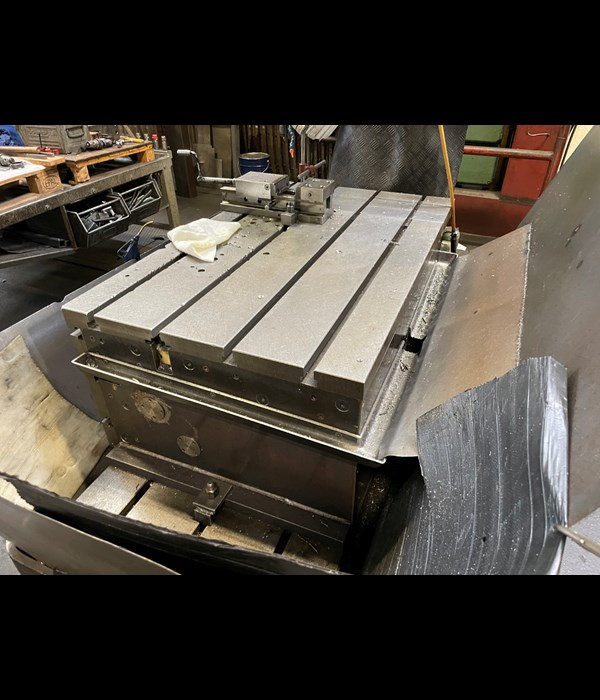

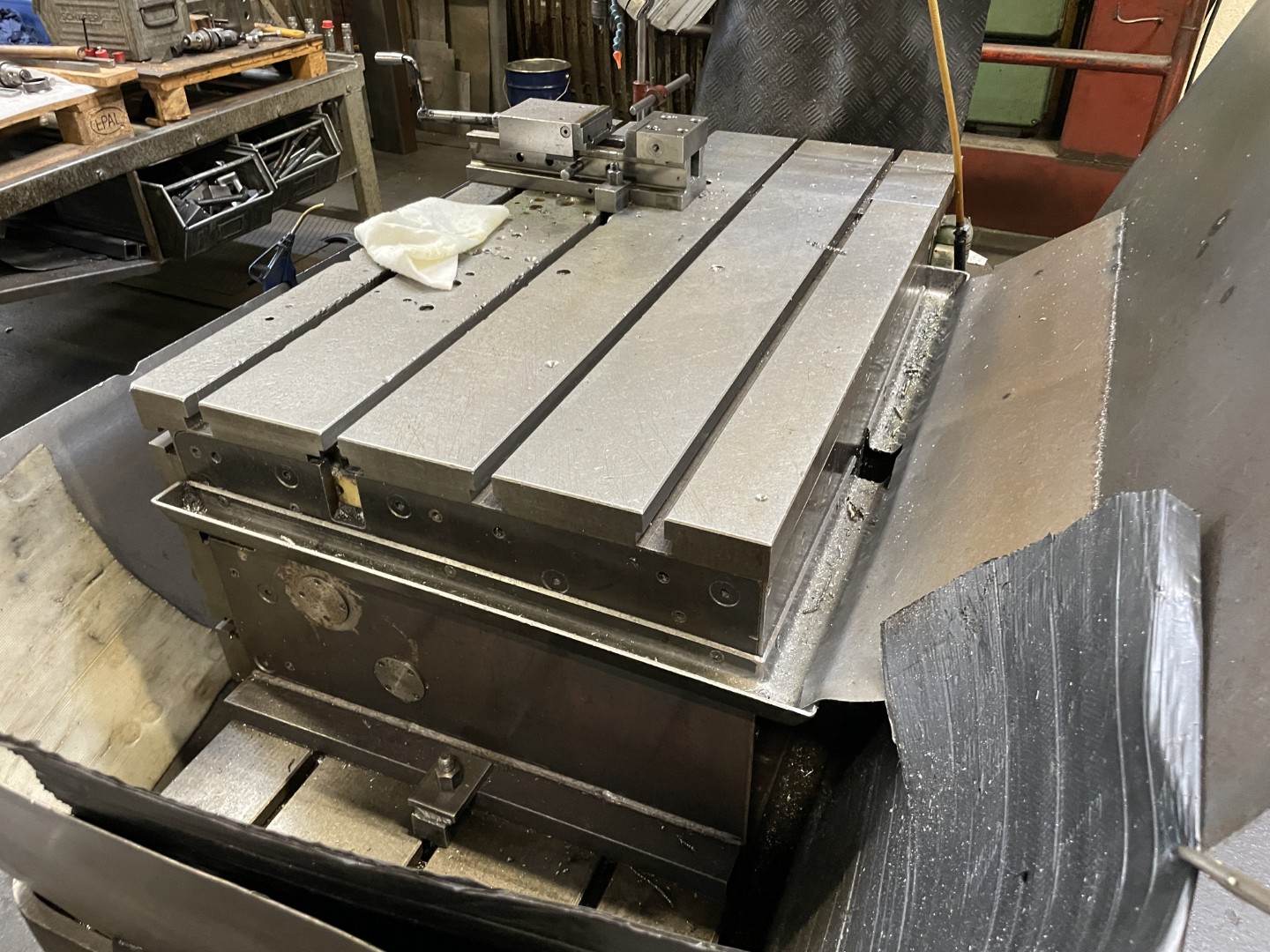

| Table : | 1835x965mm |
| Motor: | 5,5hp |
| Manufacturingyear: | 1977 |
| Length: | 2000 |
| Width: | 1000mm |
| Height: | 2705mm max:2895mm |
| Weight: | 4000kg |
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
