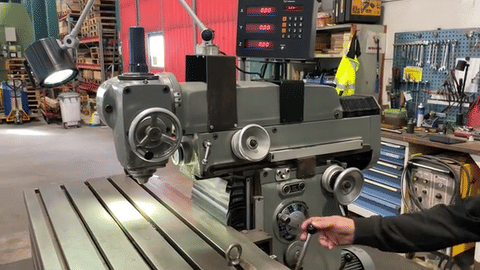

Deckel FP2LB
Milling machines
| Specification | |
|---|---|
| Stock number: | 060495 |
| Serial number: | 637 |
| Longd. travel: | 800 mm |
| Crosstravel: | 300 mm |
| Vertical travel: | 400 mm |
| Table: | 1000x440 mm |
| Vertical table: | 600x220 mm |
| Spindle taper: | ISO 40 |
| Spindle speed: | 40-2000 rpm |
| Feeds: | 10-500 mm/min |
| Rapid traverse: | 1500 mm/min |
| Spindle motor: | 2,5 kW |
| Length: | 1570 mm |
| Width: | 1675 mm |
| Height: | 1560 mm |
| Weight: | 1980 kg |
Information
3-axl. Heidenhain DRO.
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
