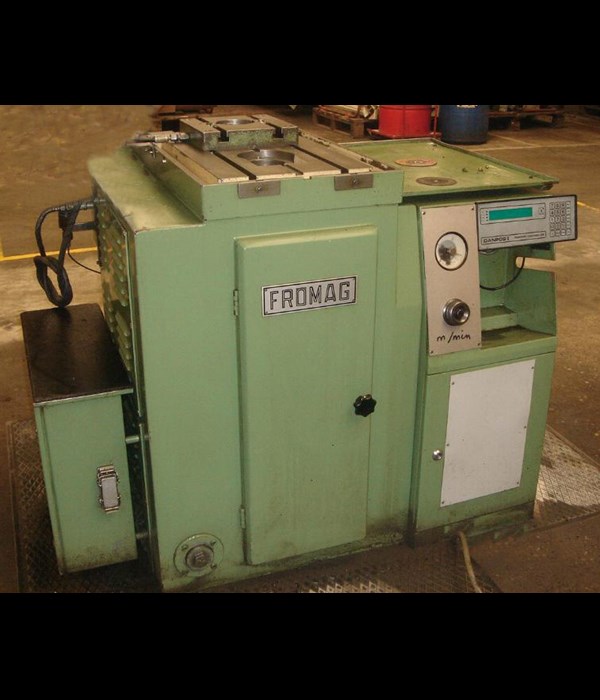

Frömag Combi Rapida D 125/1500
Shaping, Slotting and Broaching machines
| Specification | |
|---|---|
| Stock number: | 290551 |
| Serial number: | Akk91339ASK1748 |
| Keyseat width: | 3-125 mm |
| Key seat length: | 1500 mm |
| Stroke: | 1500 mm |
| Table: | 280x320 mm |
| Table bore: | 100 mm |
| Tool transporter stroke: | 600 mm |
| Speed: | 2-20 m/min |
| Return speed: | 40 m/min |
| Table load: | 35 ton |
| Broach diameter: | 90 mm |
| Manufacturing year: | 1980 |
| Power supply: | 6,1 kW |
| Mainmotor: | 5,5 kW |
| Length: | 830 mm |
| Width: | 1220 mm |
| Height: | 1110+2900 mm |
Information
Tool transporter, chip conveyor and exhauster. For toolings see Stock No: 290552
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
