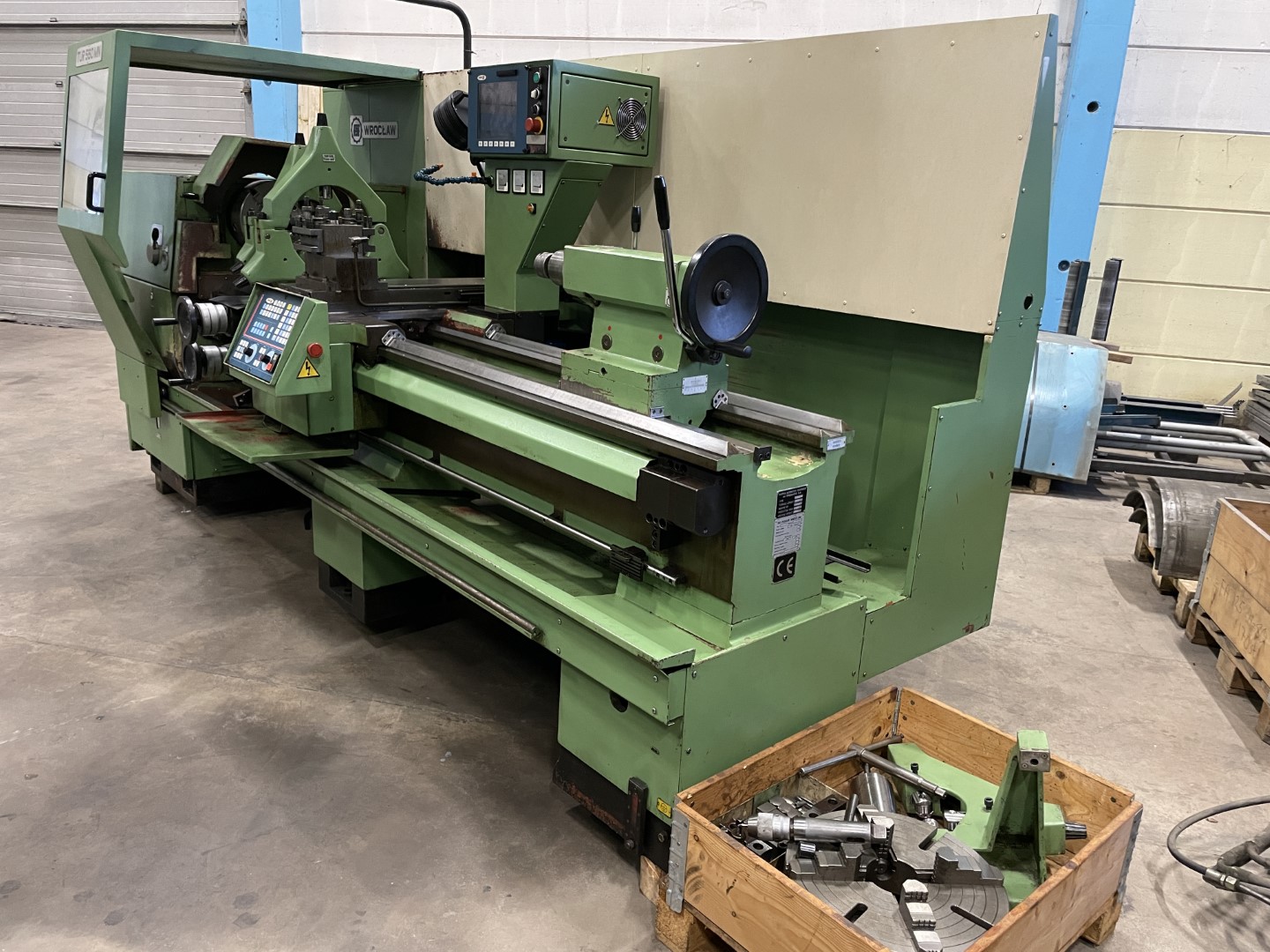

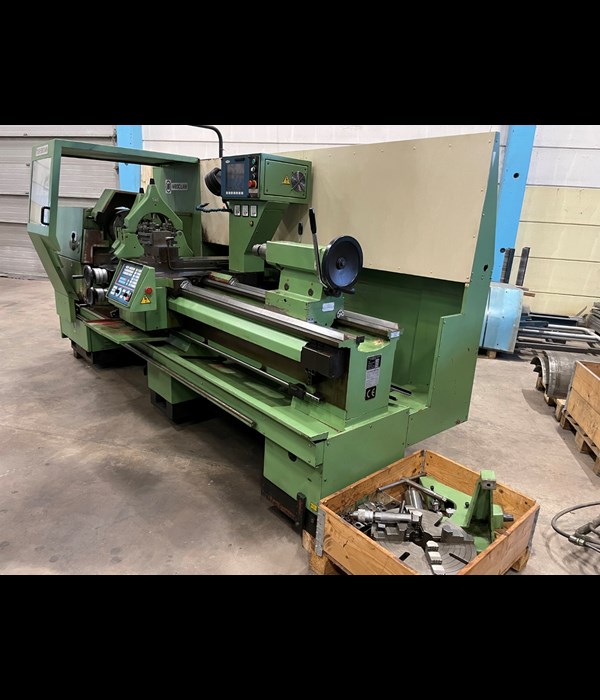

FAT TUR 560 MN CNC Fagor 8055
CNC lathe
| Specification | |
|---|---|
| Stock number: | 010777 |
| Serial number: | 170551 |
| Swing over bed: | 560mm |
| Swing over crosslide: | 300mm |
| Centerdistance: | 2000mm |
| Workpiece weight between centers: | 2000kg |
| Spindlebore: | 90mm |
| Spindlespeed: | 2-2500rpm |
| Taper in tailstock: | Mk5 |
| Spindlemotor: | 15kW |
| Manufacturingyear: | 1997 |
| Length: | 3700mm |
| Width: | 1800mm |
| Height: | 1950mm |
| Weight: | 3700kg |
Information

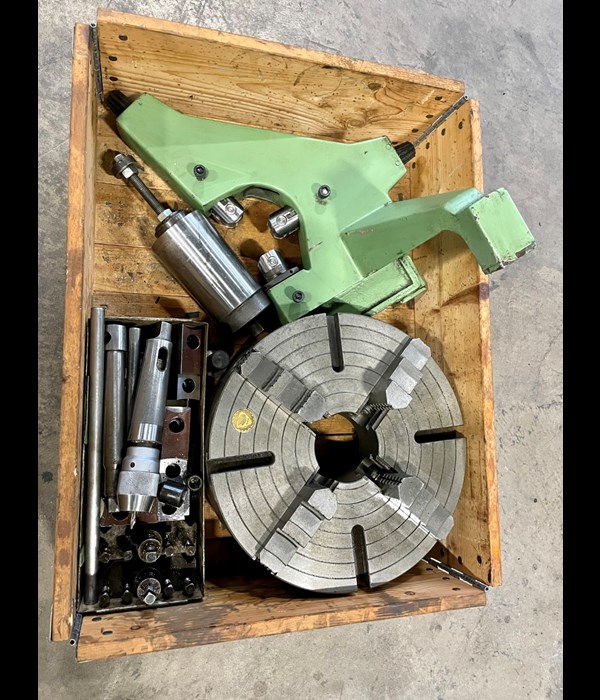

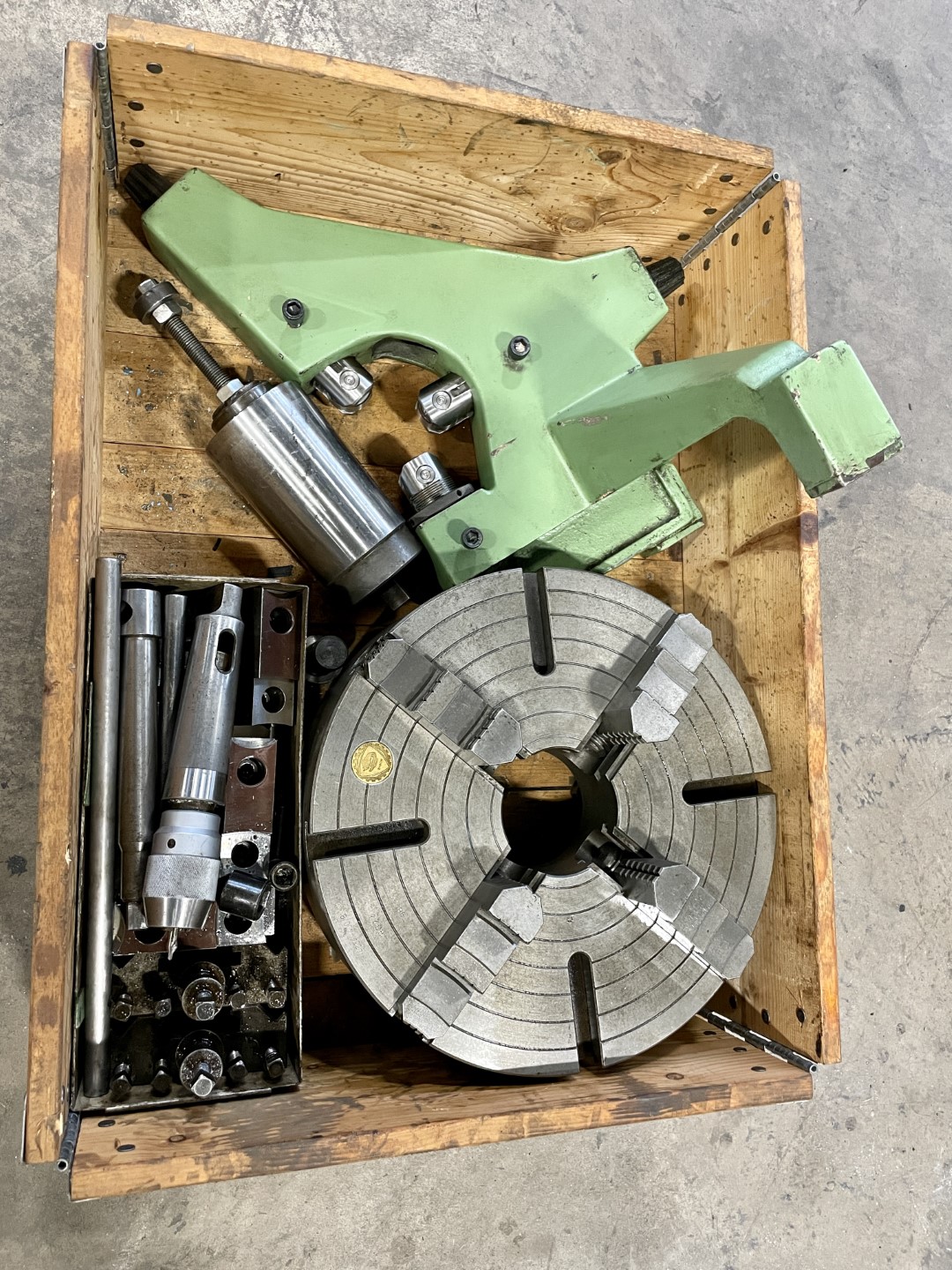

2pcs. fixed Steadyrests ø10-180 & 140-300mm
1pc. following steadyrest
4-jaw chuck
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
