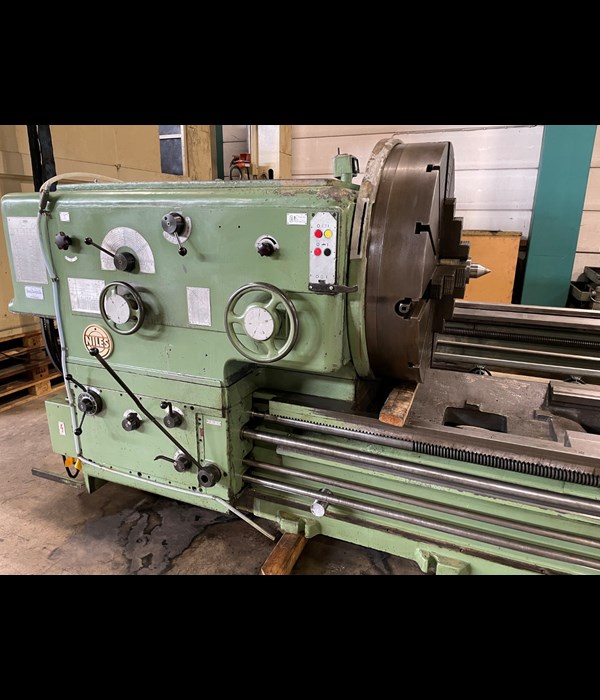

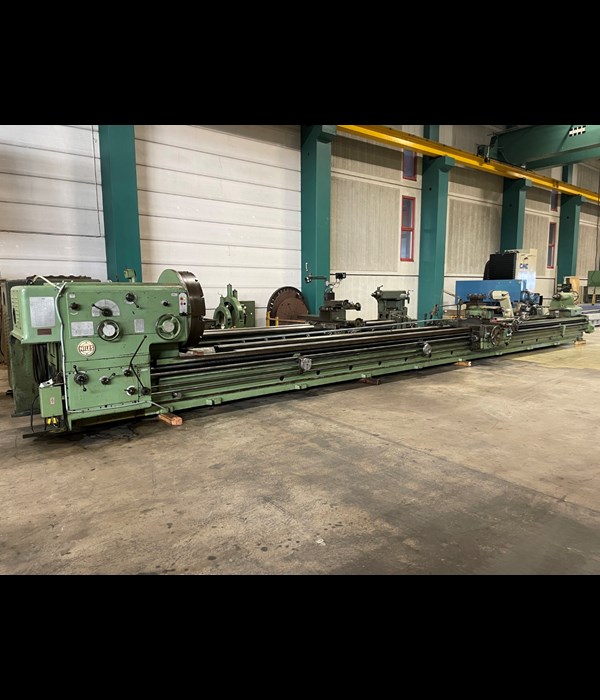

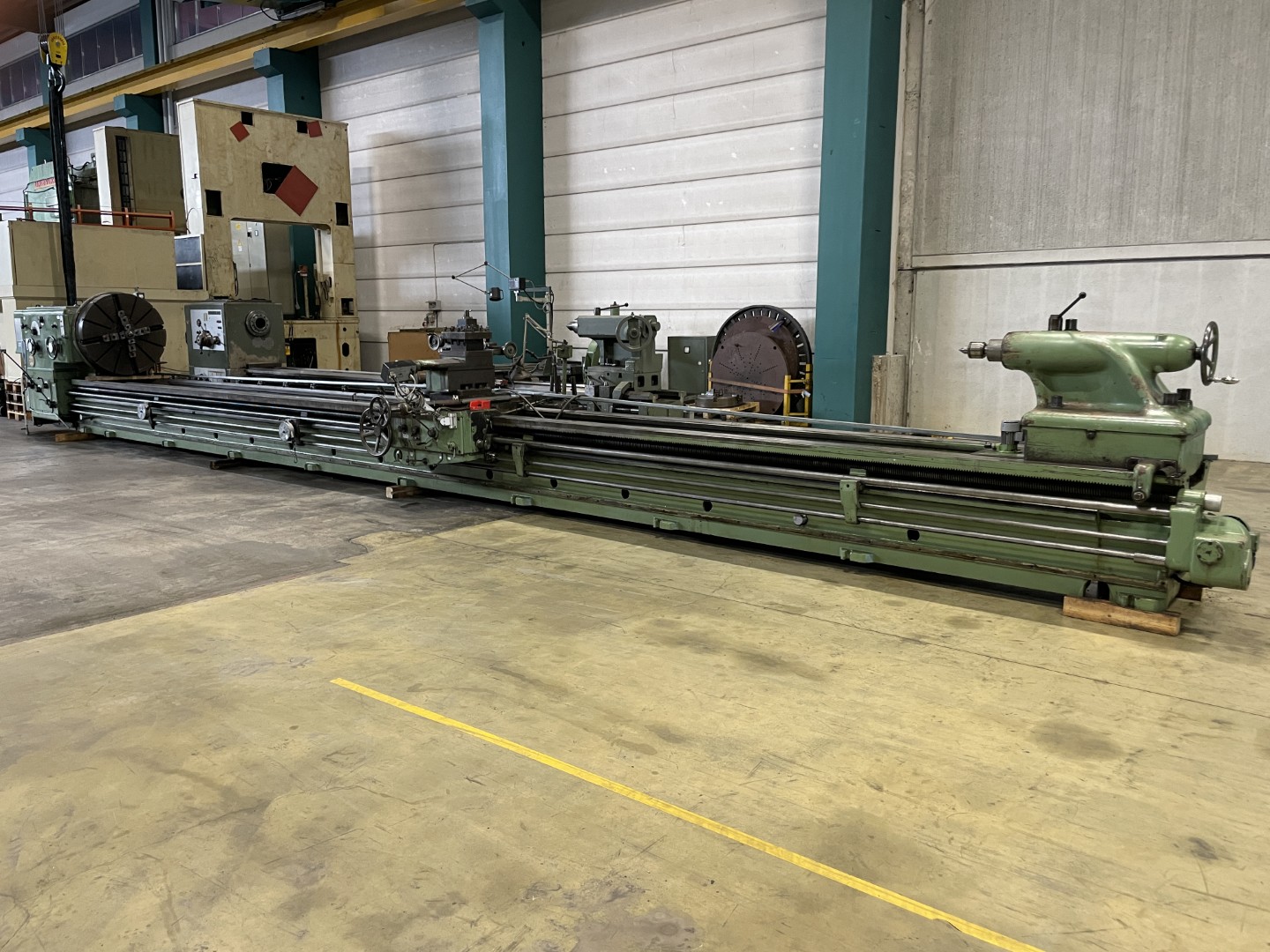

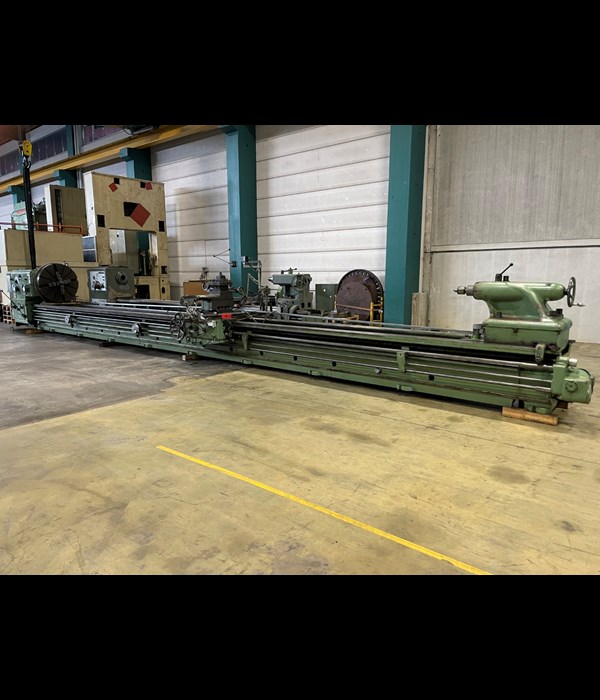

WMW Niles DLZ 1160x10000
Support lathe
| Specification | |
|---|---|
| Stock number: | 010816 |
| Serial number: | 11002049 |
| Swing over bed: | 1160mm |
| Swing over crosslide: | 890mm |
| Swing in gap: | 1320mm |
| Spindlebore: | 110mm |
| Centerdistance: | 10000mm (10535mm) |
| Spindle nose: | B11 metric 120mm |
| Spindlespeed: | 4,5-560rpm |
| Longd feed: | 0,05-3,55mm/r |
| Crossfeed: | 0,018-1,25mm |
| Rapidtraverse: | 4370mm/min |
| Threads metric: | 0,2-448 |
| Motor: | 30kW |
| Manufacturingyear: | 1967 |
| Length: | 14950mm |
| Width: | 2000mm |
| Height: | 1600mm |
| Weight: | 14500kg |
Information
3pcs. fixed steadyrests ø355mm, ø650mm
Following steadyrest ø280mm
Crowning attachment
Polishing/grinding attachment
Coolant attachment full length

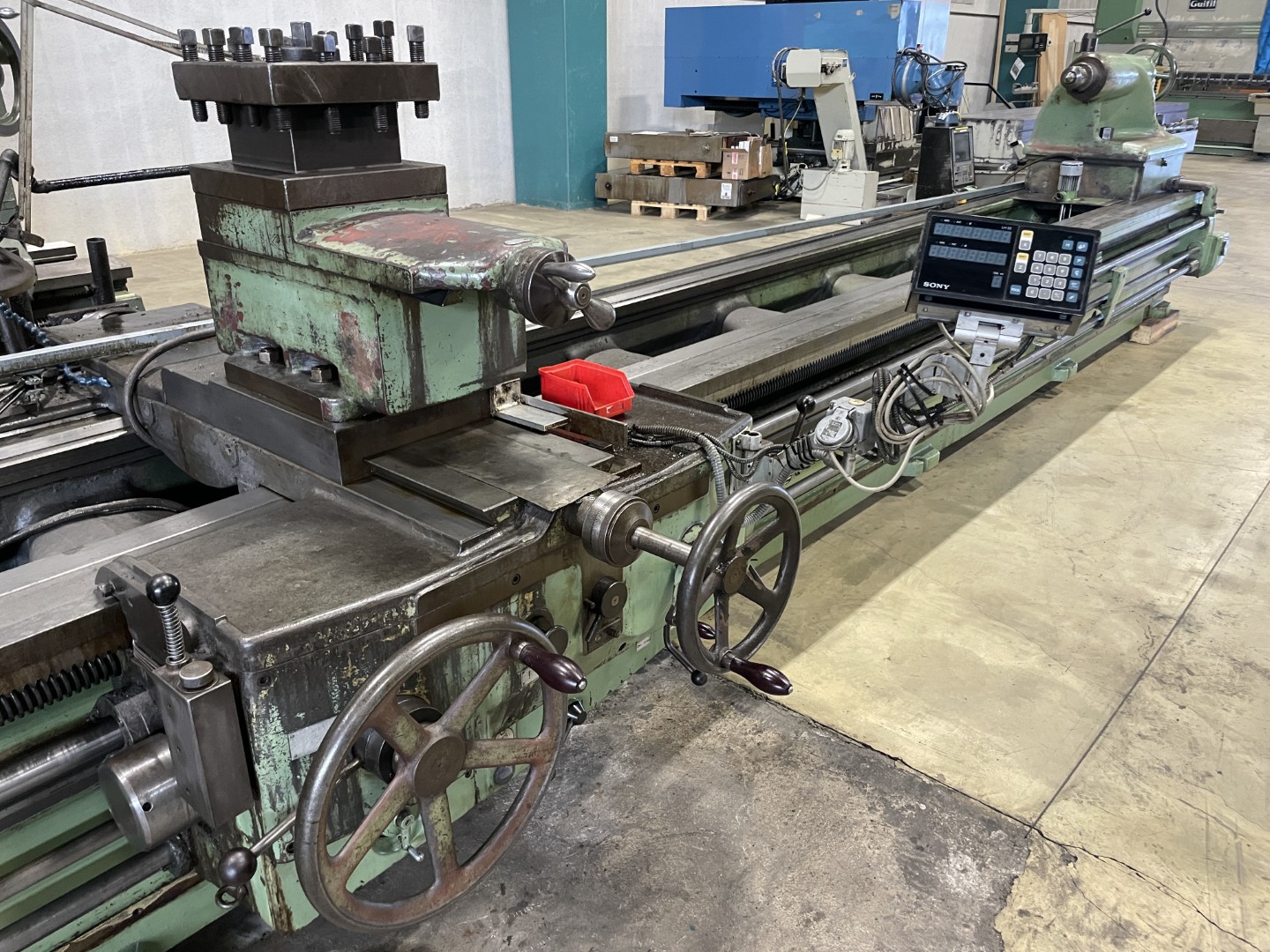

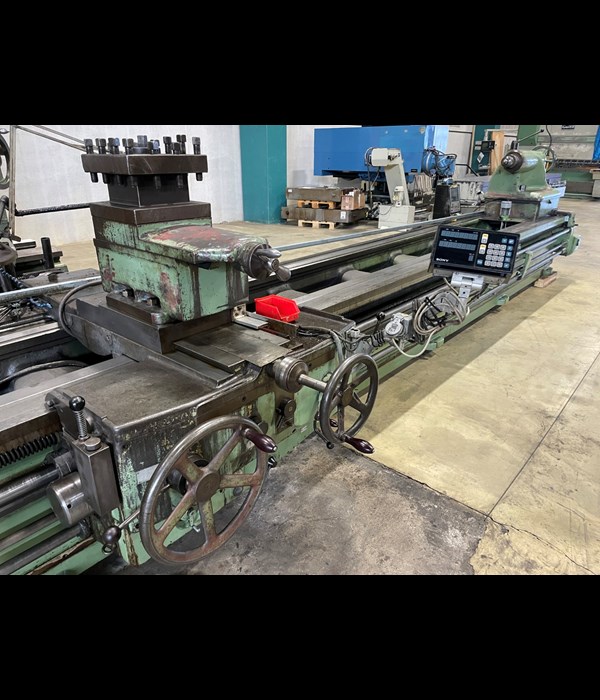

2-axle Sony DRO
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
