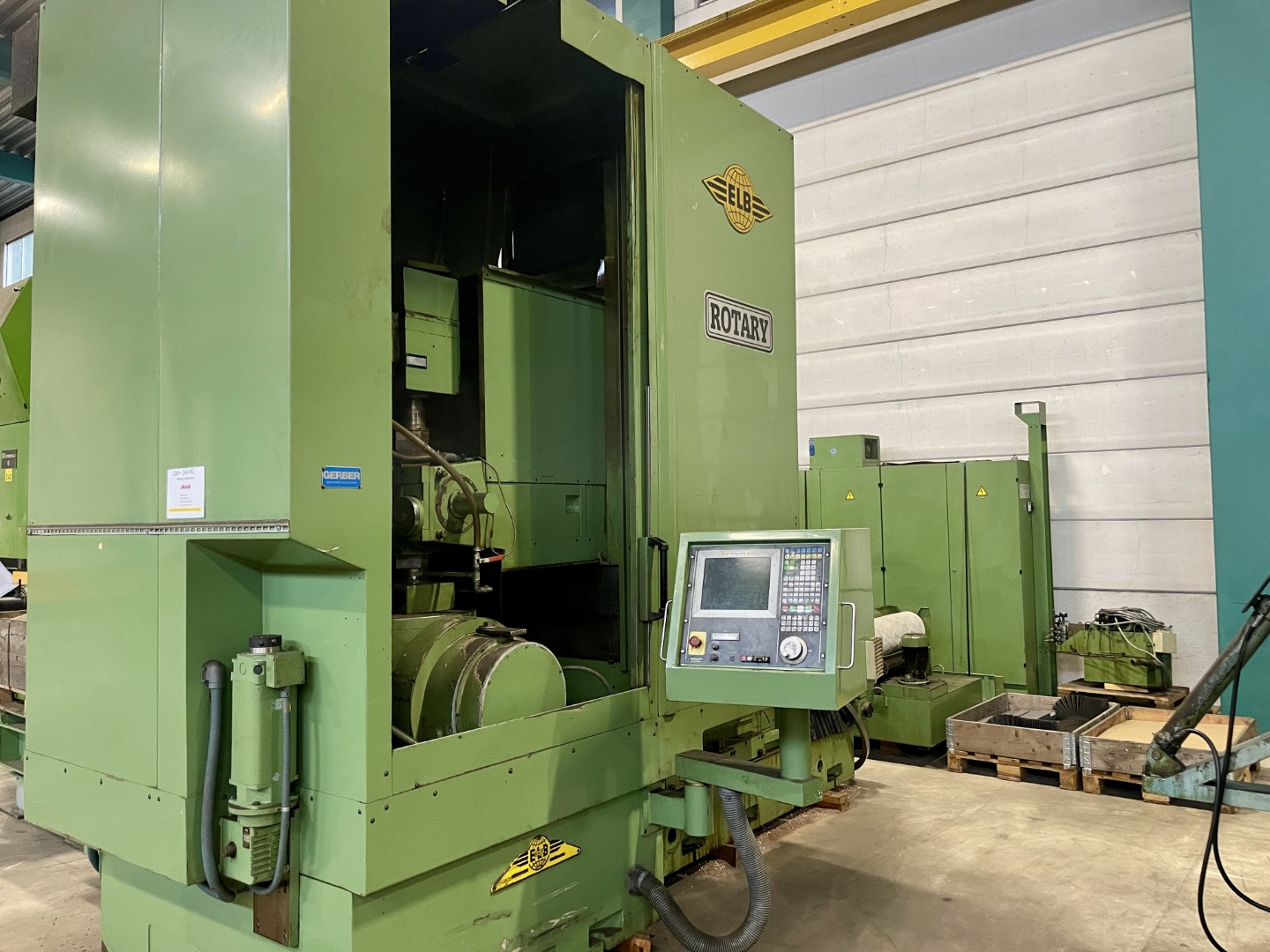

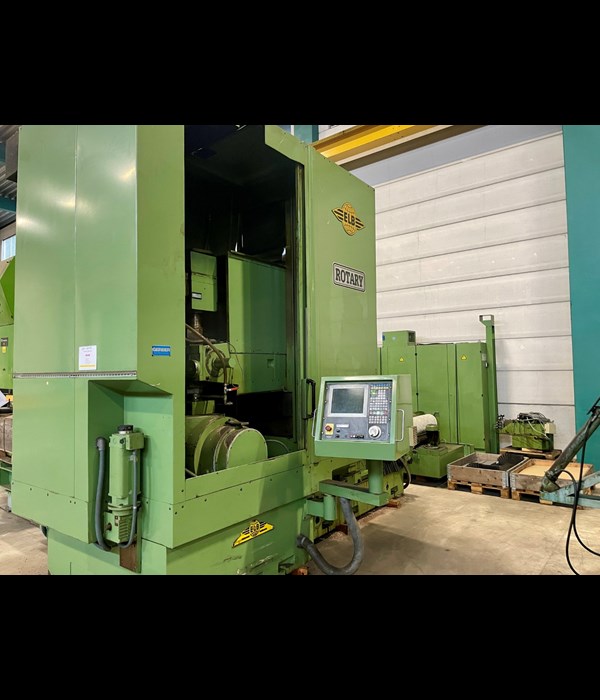

Elb Rotary 100S-VS Unicorn CNC
Rotarytable grinder CNC
| Specification | |
|---|---|
| Stock number: | 120228 |
| Serial number: | 21.471.0491 |
| Max diameter cylindrical grindning: | 1000mm |
| Workpiece height: | 450mm |
| Internal grinding min.: | ø120mm |
| Internalgringding height max: | 200mm |
| Table load: | 1500kg |
| Table: | ø650mm |
| Faceplate: | ø500-1100mm |
| B-axle table rotation: | 0,15-50rpm |
| U-axle Table swivel: | ±30° |
| Y-axle spindle head vertical travel : | 700mm |
| Z-axle column crosstravel: | 925mm |
| C-axle Spindlespeed: | 1000-4000rpm |
| V-axle Spindle osc. DRO.: | 150mm |
| A-axle spindle angle-indication DRO.: | ±50° |
| Spindlemotor: | 2,8-11,2kW |
| Grinding wheel: | 300x50x76,2mm |
| Powersupply: | 45kW |
| Manufacturingyear: | 1991 |
| Length: | 4000mm |
| Width: | 2000mm |
| Height: | 3650mm |
| Weight: | 15ton appx. |
Filmer
Documents
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
