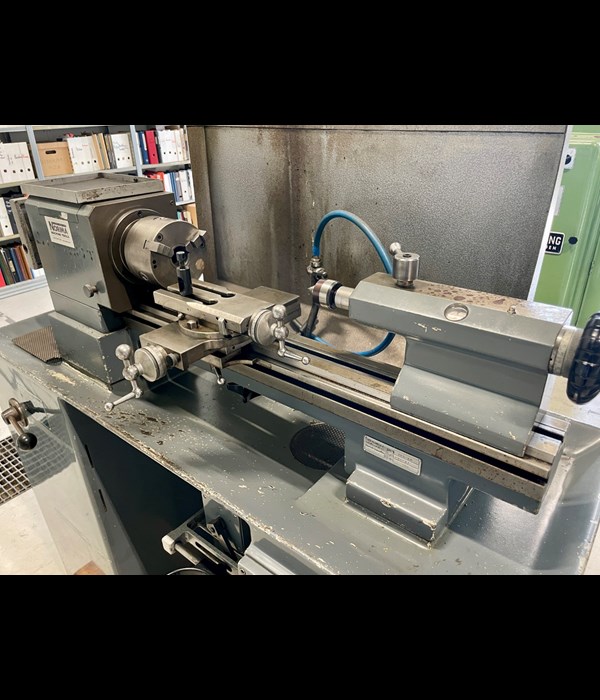

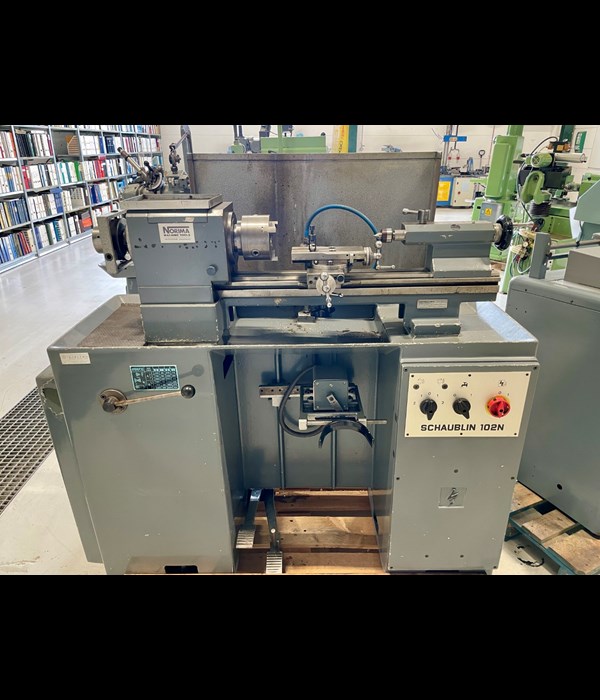

Schaublin 102N 105-80
Tool room lathe
| Specification | |
|---|---|
| Stock number: | 010756 |
| Serial number: | BL 291237 |
| Centerheight: | 102mm |
| Turning diameter: | ø200mm |
| Centerdistance: | 450mm |
| Spindlebore: | ø19mm |
| Spindlespeed: | 90-2600rpm |
| Taper in tailstock: | MT2 |
| Quill travel: | 80mm |
| Motor: | |
| Length: | 1400mm |
| Width: | 600mm |
| Height: | 1250mm |
| Weight: | 550kg |
Information

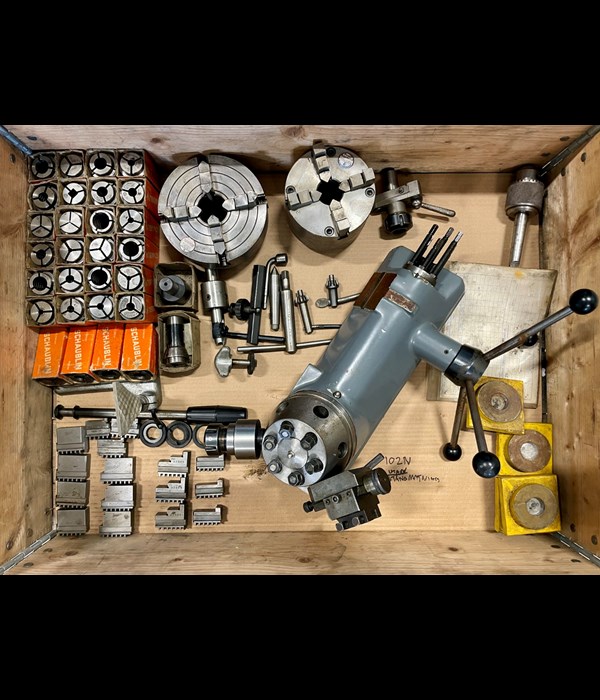

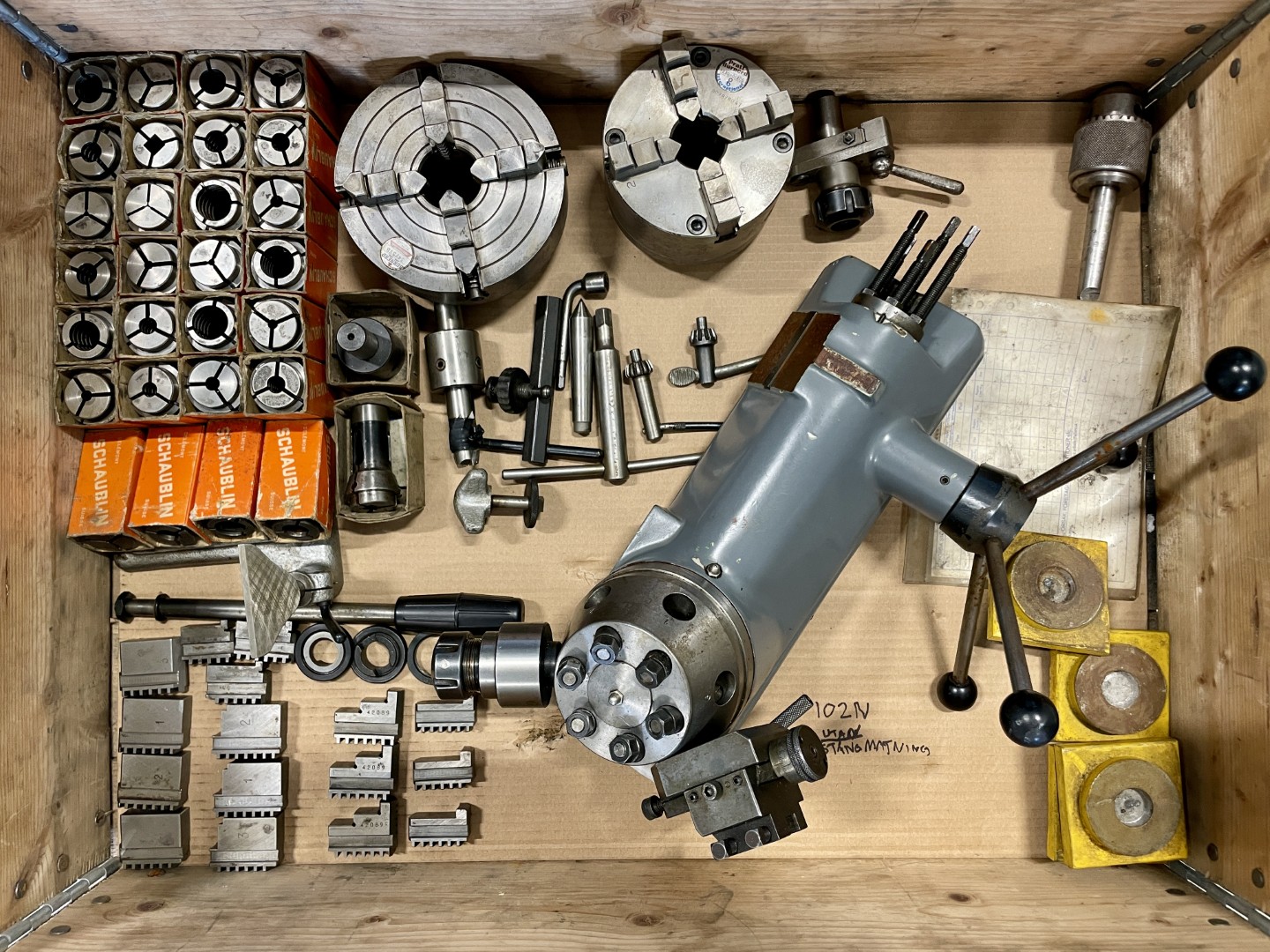

Quick-closing colletchuck, collets F27, 3-jaw chcuk, 4-jaw chuck, turret head, reverse knee operated & coolant unit.
This info is to the best of our knowledge, but is not binding in detail. Buyers are responsible to ensure machines comply with local safety regulations.
